Rubicon Express Tri-Link Rear Truss Kit for 1997-2002 Jeep Wrangler TJ

Already have a Rubicon Express long arm system and want to change your suspension in the rear to a true 3-link? Here is what you have been looking for. Triangulate the rear of your TJ and eliminate the rear track bar that can cause lateral axle movement. The kit features HD SF1 pivot ball assembly, attached with 5/8 grade 8 hardware providing superior strength and up to 32 degrees of misalignment. **Exhaust modifications required.

Vehicle Applications:

• 1997-2002 Jeep Wrangler TJSpecial Note: Exhaust Modification Required. Fits D35 and D44 Axles.

Year(s): 1997, 1998, 1999, 2000, 2001 and 2002

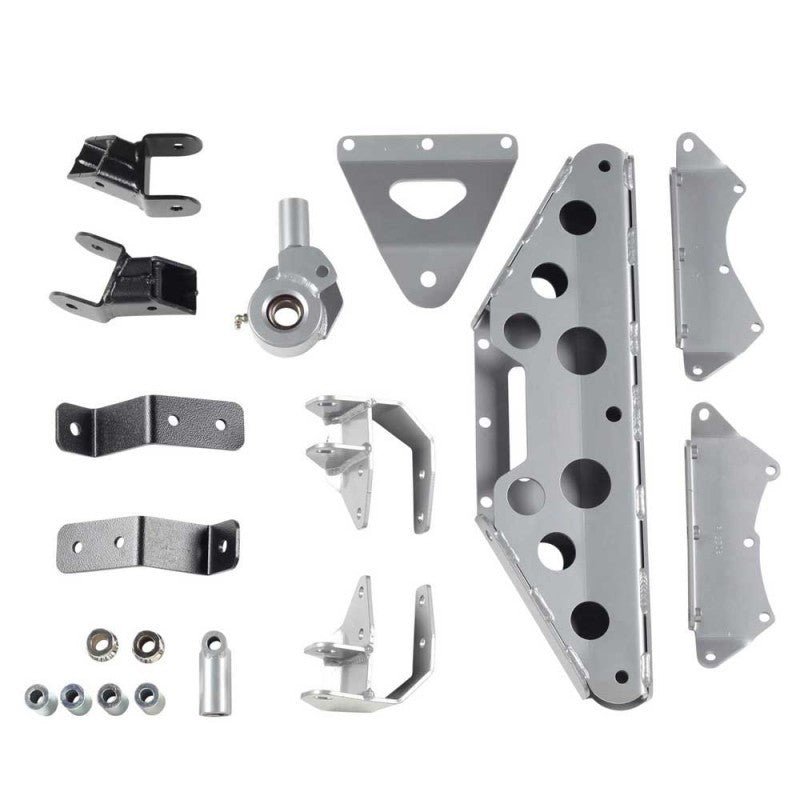

Components:

• HWC10100– BAG KIT #30 TRI-LINK TRUSS
• RE-INSTRUCTIONS– INSTRUCTION SHEET
• RM10210– HDSF1, SLEEVE, 5/8 BOLT
• RM10250– TRI-LINK REAR BRACKET SPACER,1
• RM13700– HDSF1, SPHERICAL BALL
• RM13710– HDSF1, RACE, UHMW
• RM23000– TRI-LINK LEFT UPPER C/A MOUNT
• RM23005– TRI-LINK RIGHT UPPER C/A MOUNT
• RM23010– TRI-LINK LEFT&RIGHT C/A BRACE
• RM23025– TRI-LINK MAIN TRUSS
• RM23030– TRI-LINK LEFT C/A TO TRUSS MOU
• RM23035– TRI-LINK RIGHT C/A TO TRUSS MO
• RM23040– TRI-LINK PIVOT ASSEMBLY
• RM23045– TRI-LINK UPPER PIVOT SUPPORT
• RM23050– TRI-LINK TRUSS TO D44 BRACKET
• RM23055– TRI-LINK TRUSS TO D35 BRACKET
