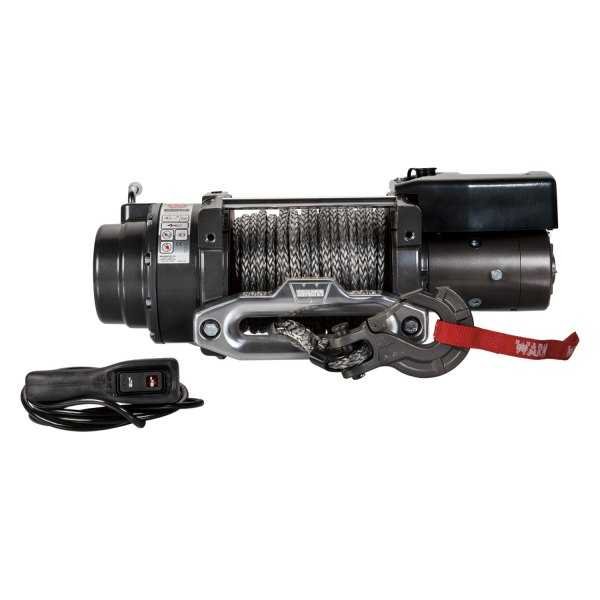

Warn 97740 16.5TI-S Series Electric Winch with Spydura Pro Synthetic Rope

Universal 16,500 lbs 16.5ti Series Electric Winch with Spydura„¢ Pro Synthetic Rope (97740) by WARN®. Rope Length:80′. Rope Diameter:3/8″. This product is made from high-grade materials to meet the strictest standards of high quality. Designed with the utmost care and attention to detail, this WARN’s product ensures superior reliability. It provides long lasting and trouble-free service life.

Notes:

• This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Specifications:

• Type: Electric
• Mount Type: Vehicle Mounted
• Recommended Use: Vehicle Recovery
• Voltage: 12 Volt
• Motor Horsepower: 4.6 Horsepower
• Motor Type: Series Wound
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 315:1
• Free Spooling: Yes
• Brake Type: Direct Drive Cone
• Line Diameter: 3/8 Inch
• Line Lenght: 80 ft.
• Line Material: Synthetic
• Fairlead Type: Hawse
• Remote Type: Wired
• Operation Type: Automatic
• Color: Gray
• Max Amp Draw/ Line Pull: 507 Amp Draw/ 16500 Pound
• Max Line Pull/ Line Speed: 16500 Pound/ 3.24 ft. Per Minute

Features:

• The strongest pulling power, fast line speeds and overheating protection in a beefy, no-compromises constructed package
• Powerful series wound 4.6 hp 12V DC high-speed electric motor and durable 3-stage planetary gear train with 315:1 gear ratio deliver 16,500 lbs. pulling capacity
• Motor mounted thermal sensor detects motor temperature and signals LED in remote to blink if temperature is reached where damage could occur with continued operation
• 80€™ of strong 3/8″ diameter Spydura Pro synthetic rope
• Line speed: 23.6′ per minute under no load at 68 amps, and 3.24€™ per minute at 16,500 lb. max. limit at 507 amps
• Exclusive design automatic mechanical cone brake provides superior control while winching
• Extreme-duty sealing protects internals from water and contaminants
• Aluminum control box cover provides additional protection for electronics
• Remote control with LED light and 12€™ lead
• Primer base coat and powdercoated top coat resists chips and corrosion
• Dimensions: 24.2€�L x 8.5€�D x 9.7€�H
• Weight: 138 lbs.
• Comes with detailed installation and user instructions
• Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm)
