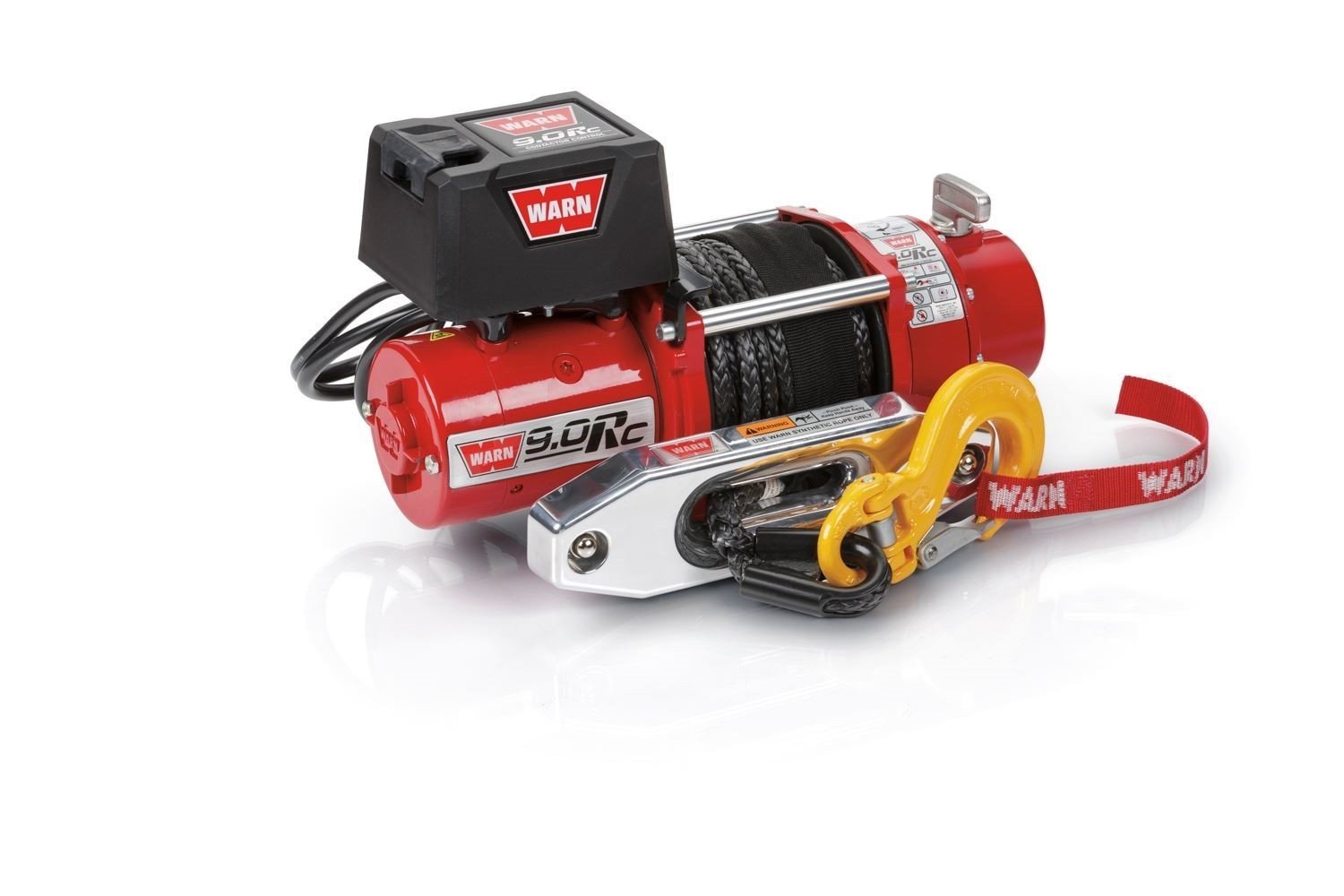

Warn 71550 9.0RC Winch

Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That’s why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.

• 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
• Next-generation control pack delivers long duty cycles
• New-style remote control
• 50′ of 3/8″ (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
• Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
• Aluminum hawse fairlead
• Exclusive multi-segment cam actuated brake for positive operator control during winching
• Gloss red paint with primer undercoat gives superior corrosion resistance
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specifications:

• Type: Electric
• Mount Type: Vehicle Mounted
• Recommended Use: Vehicle Recovery
• Voltage: 12 Volt
• Motor Horsepower: 4.8 Horsepower
• Electrical Control Type: Contactors
• Motor Type: Series Wound
• Thermal Shutoff: No
• Drive Gear Type: Planetary
• Gear Reduction Ratio: 216:1
• Free Spooling: Yes
• Brake Type: Mechanical Cone
• Line Diameter (In): 3/8 Inch
• Line Length (Ft): 50 Feet
• Line Material: Synthetic
• Fairlead Type: Hawse
• Conforms To J706 Standards: No
• Remote Type: Handheld Remote Switch
• Mounting Hole Quantity: 4
• Operation Type: Automatic
• Mounting Pattern Length (In): 6 Inch
• Mounting Pattern Width (In): 4-1/2 Inch
• Includes Mounting Hardware: No
• Color: Red
• Max Amp Draw/ Line Pull: 408 Amp Draw/ 9000 Pound
• Max Line Pull/ Line Speed: 9000 Pound/ 5.6 Feet Per Minute

Fitment:
2020-2021 Jeep Gladiator JT
2007-2018 Jeep Wrangler JK
2018-2021 Jeep Wrangler JL
